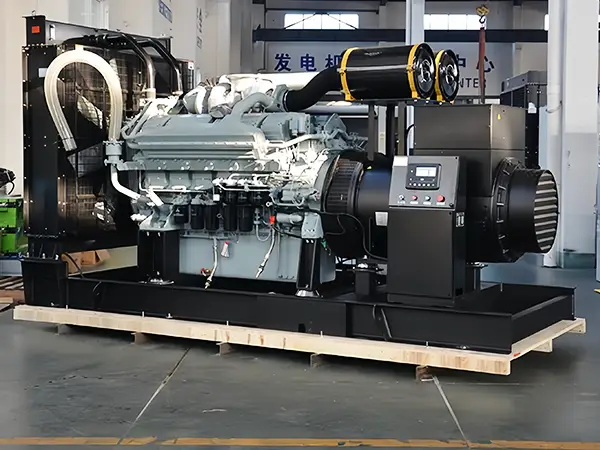

Mitsubishi-powered diesel generator sets feature reliable Mitsubishi engines along with advanced digital control panels, supporting remote monitoring and automated operation. Built to meet stringent international emission standards such as EU Stage V and EPA Tier 4, these units combine power and efficiency with environmental responsibility. With displacements of up to 79.9 liters, they deliver strong performance across a wide range of applications.
| Frequency | 50Hz |
| Prime Power | 675-2450kVA (540-1960kW) |
| Standby Power | 743-2695kVA (594-2156kW) |
| Fuel Consumption | 108.0-575.0L/h |
| Displacement | 24.5-79.9L |
| Genset Model | Prime Power | Standby Power | Engine Model | Fuel Consumption | Cylinder | Displacement | ||
| kVA | kW | kVA | kW | L/h | L | |||
|
|
675 | 540 | 743 | 594 | S6R2-PTA | 108.0 | 6L | 24.5 |
|
|
750 | 600 | 825 | 660 | S6R2-PTAA | 119.0 | 6L | 24.5 |
|
|
800 | 640 | 880 | 704 | S12A2-PTA | 154.0 | 12V | 33.9 |
|
|
900 | 720 | 990 | 792 | S12A2-PTA2 | 190.0 | 12V | 33.9 |
|
|
937.5 | 750 | 1031 | 825 | S12H-PTA | 220.0 | 12V | 49.0 |
|
|
1275 | 1020 | 1402.5 | 1122 | S12R-PTA | 264.0 | 12V | 49.0 |
|
|
1375 | 1100 | 1512.5 | 1210 | S12R-PTA2 | 281.0 | 12V | 49.0 |
|
|
1500 | 1200 | 1650 | 1320 | S12R-PTAA2 | 306.0 | 12V | 49.0 |
|
|
1750 | 1400 | 1925 | 1540 | S16R-PTA | 382.0 | 16V | 65.4 |
|
|
1925 | 1540 | 2117.5 | 1694 | S16R-PTA2 | 391.0 | 16V | 65.4 |
|
|
2000 | 1600 | 2200 | 1760 | S16R-PTAA2 | 437.6 | 16V | 65.4 |
|
|
2250 | 1800 | 2475 | 1980 | S16R2-PTAW | 482.0 | 16V | 65.4 |
|
|
2450 | 1960 | 2695 | 2156 | S16R2-PTAW-E | 575.0 | 16V | 79.9 |
Mitsubishi diesel generator sets can be configured to deliver various voltage options such as 415/240V, 380/220V, and 220/127V. Users can select the appropriate voltage based on their specific power requirements.
Noise control is a key consideration in the design, with efficient mufflers and soundproofing materials reducing operational noise. Sound levels are typically below 100dB(A), meeting relevant environmental standards and making them suitable for a range of applications.
