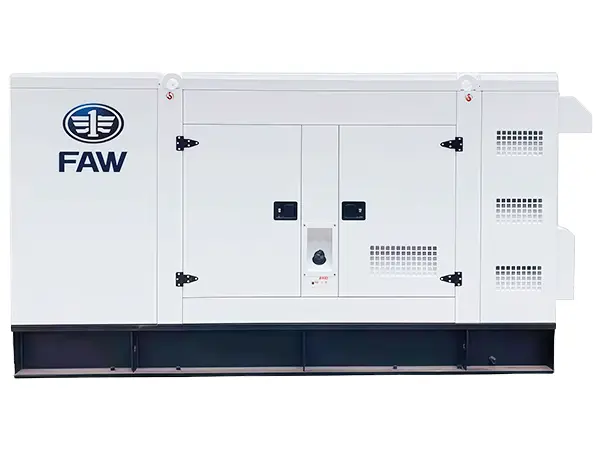

FAW Powered Diesel Generators

FAW-powered diesel generator sets are equipped with reliable FAW diesel engines, meeting China III and above emission standards, with select models compliant with China IV standards. Available in standard power ratings from 10 to 375 kVA, these gensets are engineered for stable power supply performance and efficient fuel use, making them suitable for a variety of industrial, commercial, and backup power applications.

Frequency 50Hz 60Hz
Prime Power 10-375kVA (8-300kW) 13-375kVA (10-300kW)
Standby Power 11-413kVA (8.8-330kW) 14-413kVA (11-330kW)
Alternator LONGEN LONGEN
Controller SmartGen SmartGen
Request a Quote
Technical Specifications
50Hz Diesel Generator Sets
Model Prime Power Standby Power Engine  Alternator Controller Open Set  Silent Type
kVA kW kVA kW FAW LONGEN SmartGen Dimensions (L×W×H) (mm) Weight (kg) Dimensions (L×W×H) (mm) Weight (kg)
CDF11 10 8 11 8.8 YD385D WHI164B HGM6110U 1450×650×1100 400 1800×850×1100 600
CDF15 13.5 10.8 15 12 4DW81-23D WHI164C HGM6110U 1500×650×1100 430 2000×850×1200 630
CDF16.5 15 12 16 13 4DW81-23D WHI164D HGM6110U 1500×650×1100 450 2000×850×1200 650
CDF22 20 16 22 17.6 4DW91-29D WHI184E HGM6110U 1500×650×1100 500 2000×850×1200 750
CDF27.5 24.5 20 27.5 22 4DW92-35D WHI184F HGM6110U 1550×650×1100 550 2000×850×1200 750
CDF33 30 24 33 26.5 4DW92-39D WHI184G HGM6110U 1900×800×1250 620 2500×950×1510 830
CDF40 38 30 41 33 4DX21-53D/39-43kw WHI184H HGM6110U 1900×800×1350 850 2500×950×1510 1350
CDF55 50 40 55 44 4DX22-65D/48-53kw WHI224D HGM6110U 1900×800×1400 900 2500×950×1510 1400
CDF70 63 50 69 55 4DX23-78D/57-63kw WHI224E HGM6110U 1900×800×1400 950 3100×1100×1610 1500
CDF96 88 70 96 77 4DF2-12D/84-92kw WHI224G HGM6110U 2000×800×1450 1000 3100×1100×1610 1600
CDF110 100 80 110 88 6DF2D-14D/96-105kw WHI274C HGM6110U 2300×850×1550 1050 3100×1200×1610 1700
CDF138 125 100 138 110 6DF2-17D/125-138kw WHI274ES HGM6110U 2400×900×1550 1400 3100×1200×1610 2200
CDF165 150 120 165 132 6DF2-19D/150-165kw WHI274F HGM6110U 2500×1000×1550 1600 3600×1200×2050 2300
CDF206 188 150 206 165 6DL1-24D/176-194kw WHI274G HGM6110U 2800×1000×1600 1700 4200×1400×2000 2500
CDF248 225 180 248 198 6DL2-27D/205-226kw WHI274J HGM6110U 2800×1000×1600 1800 4200×1400×2000 2700
CDF275 250 200 275 220 6DL2-30/227-251kw WHI274K HGM6110U 3100×1000×1600 2100 4200×1400×2000 3000
CDF330 300 240 330 264 6DM2J-39D/287-316kw WHID HGM6110U 3100×1000×1600 2200 4200×1400×2000 3200
CDF413 375 300 413 330 6DN1J-45D/332-365kw WHI4F HGM6110U 3200×1000×1650 2600 4200×1400×2000 3600
60Hz Diesel Generator Sets
Model Prime Power Standby Power Engine  Alternator Controller Open Set Silent Type
kVA kW kVA kW FAW LONGEN SmartGen Dimensions (L×W×H) (mm) Weight (kg) Dimensions (L×W×H) (mm) Weight (kg)
CDF14 13 10 14 11 YD385D WHI164B HGM6110U 1450×650×1100 400 1650×800×1150 700
CDF21 19 15 21 17 4DW81-28D WHI164D HGM6110U 1650×650×1100 500 1900×830×1150 800
CDF30 28 22 30 24 4DW91-38D WHI184E HGM6110U 1700×650×1100 550 2000×830×1150 900
CDF34 31 25 34 28 4DW92-42D WHI184F HGM6110U 1900×800×1250 620 2200×950×1300 1000
CDF41 38 30 41 33 4DX21-53D WHI184G HGM6110U 1800×800×1250 850 2280×950×1300 1050
CDF48 44 35 48 39 4DX22-60D WHI184H HGM6110U 1900×800×1400 900 2280×950×1300 1200
CDF66 60 48 66 53 4DX23-82D WHI224D HGM6110U 1900×800×1400 950 3100×1100×1610 1300
CDF85 81 65 85 72 CA4110/125Z-11D WHI224F HGM6110U 2000×800×1450 1000 3100×1100×1610 1500
CDF117 106 85 117 94 CA4DF2-14D WHI274C HGM6110U 2300×850×1550 1050 3100×1200×1610 2000
CDF131 119 95 131 105 CA6DF2D-16D WHI274C HGM6110U 2300×850×1550 1050 3100×1200×1610 1700
CDF151 138 110 151 121 CA6DF2-18D WHI274D HGM6110U 2400×900×1550 1400 3100×1200×1610 2200
CDF179 163 130 179 143 CA6DF2-21D WHI274E HGM6110U 2500×1000×1550 1600 3600×1200×2050 2300
CDF227 34 27 227 182 CA6DL1-27D WHI274G HGM6110U 2800×1000×1600 1700 4200×1400×2000 2500
CDF275 250 200 275 220 CA6DL2-32D WH274H HGM6110U 3100×1000×1600 2100 4200×1400×2000 3000
CDF370 338 270 371 297 CA6DM2J-42D WHI4D HGM6110U 3100×1000×1600 2100 4200×1400×2000 3000
CDF413 375 300 413 330 CA6DN1J-46D WHI4ES HGM6110U 3200×1000×1650 2600 4200×1400×2000 3600
  • FAW Powered Diesel Generators
  • FAW Powered Diesel Generators
  • FAW Powered Diesel Generators
  • FAW Powered Diesel Generators
  • FAW Powered Diesel Generators
How can FAW diesel generator sets be adapted for high-altitude or high-temperature environments?

At high altitudes, output is typically derated by about 7% to 9% for every 1,000 meters. A high-altitude turbocharged version is available to maintain performance. In high-temperature conditions where ambient temperatures exceed 40°C, an enhanced cooling system featuring dual fans and a larger-capacity radiator is recommended.

Parallel operation requires the installation of a paralleling control cabinet (synchronizing cabinet) and synchronization detection devices. These components ensure voltage, frequency, and phase synchronization across multiple units, enabling safe, stable, and efficient load sharing.
